LV30 2D CMOS QR Code Scanner Module Embedded in Handheld POS, PDA and Tablet

Brand Name : RAKINDA

Model Number : LV30

Certification : FCC, CE

Place of Origin : Shenzhen, Guangdong, China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : Western Union, T/T, paypal

Supply Ability : 1000 PCS/ week

Delivery Time : within 5 working days after receiving the balance

Packaging Details : Normal craft paper and foam.

Interface : TTL-232, USB

Dimensions (mm） : 21.5(D)x15.3(VV)x11.8(H)

Weight : 4.6 g

Certifications : FCC Parti 5 Class B, CE EMC Class B

Image Sensor : 752X480 CMOS

Illumination : Red LED 625nm±10 nm

Contact Now

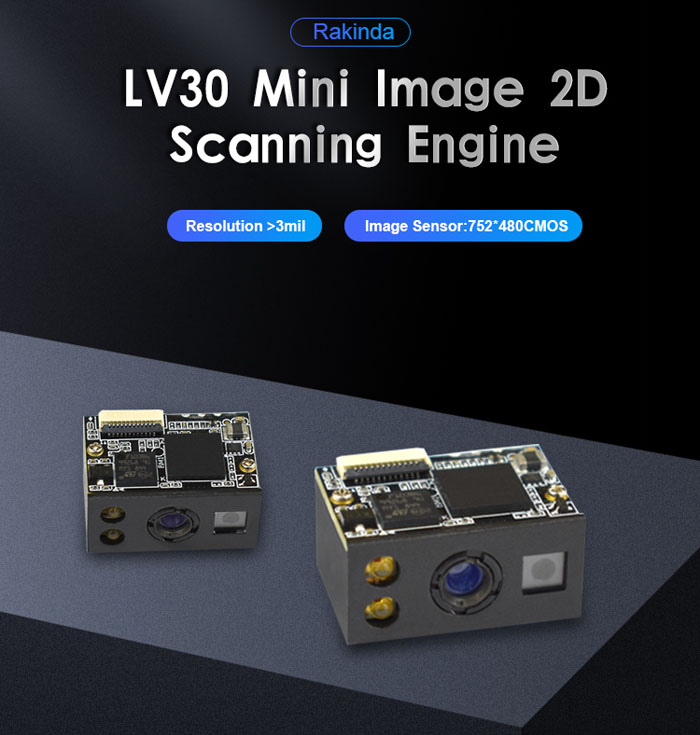

LV30 OEM Scan Engine

* All-in-One Design
* Outstanding Power Efficiency
* Multiple Interface
* Outstanding Screen Code Scanning Performance

Product Parameters

Performance Image Sensor 752X480 CMOS
Illumination Red LED 625nm±10 nm
Aiming Laser 650nm

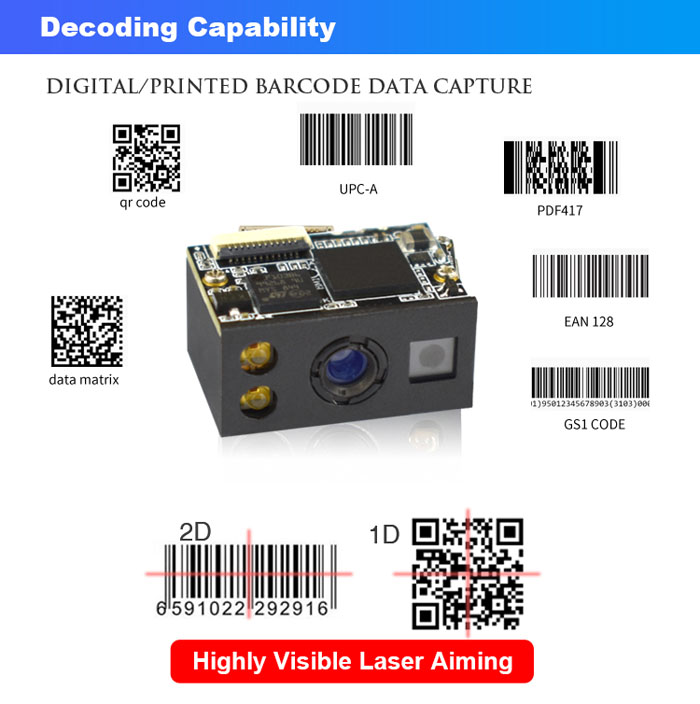

Symbologies 2D

PDF417, Data Matrix (ECC200,ECC000,050,080,100,140),

QR Code, Chinese Sensible Code
1D Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E,Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey, etc.
Resolution* N3mil
Typical Depth of EAN13(13mil) 60mm-290mm
Field* PDF417(6.7mil) 55mm-135mm
Code39 (5mil) 55mm-165mm
Data Matrix (10mil) 55mm-130mm
QR Code(15mil) 45mm-175mm
Symbol Contrast* N20%
Scan Angle** Pitch: ±55°, Skew: ±55°, Roll: 360°
Field of View Horizontal: 36°, Vertical: 23°
Mechanical/ Interface TTL-232, USB

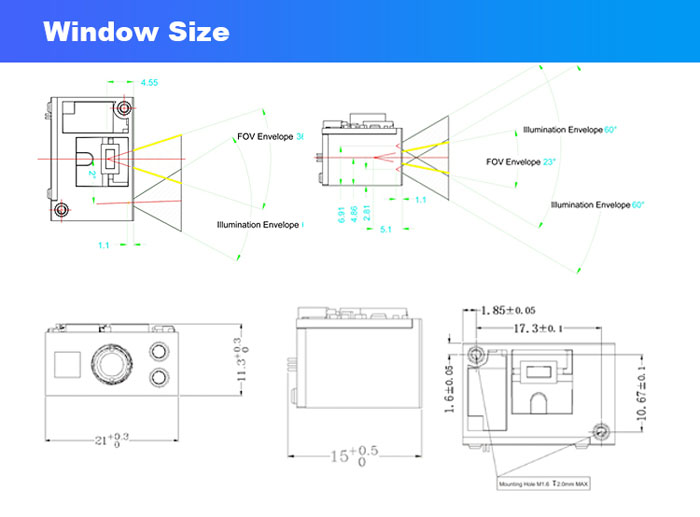

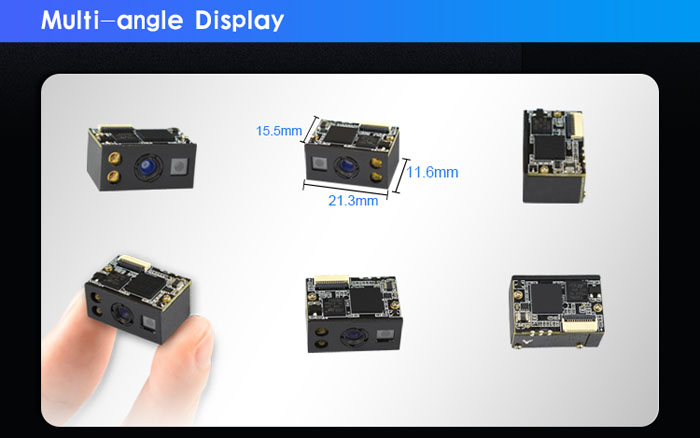

Electrical Dimensions (mm) 21.5(D)x15.3(VV)x11.8(H)
Weight 4.6 g
Operating Voltage 3.3±10% VDC

Rated Power

Consumption

 457mW (typical)
Current @3.3 VDC Operating 138mA (typical), 214mA (max)
Standby 8.2mA
Sleep <100uA
Environmental Operating -20°C~+55°C
Storage -40°C~+70°C
Humidity 5%~95% (non-condensing)
Ambient Light 0-100000 lux (natual light)
Certifications FCC Parti 5 Class B, CE EMC Class B

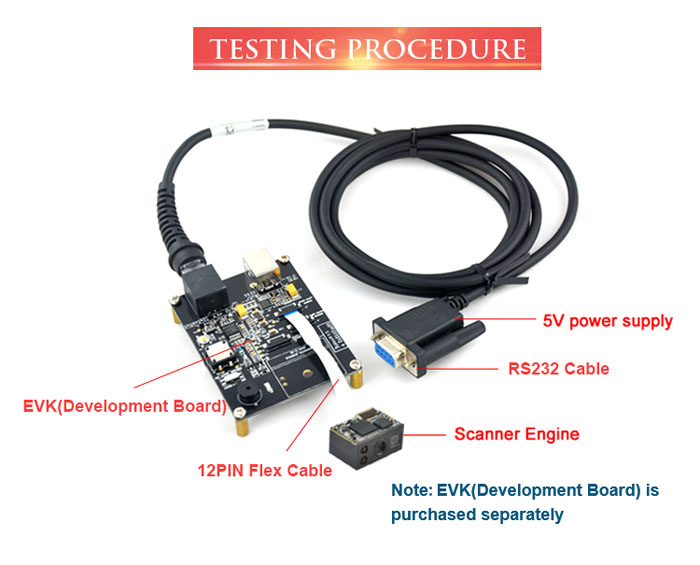

Accessories EVK Software development board, equipped with a trigger button, beeper and RS-232 & USB interfaces.
Cable USB Used to connect the EVK to a host device.
RS-232 Used to connect the EVK to a host device.
Power Adaptor DC5V power adaptor, used to provide power for the EVK.
