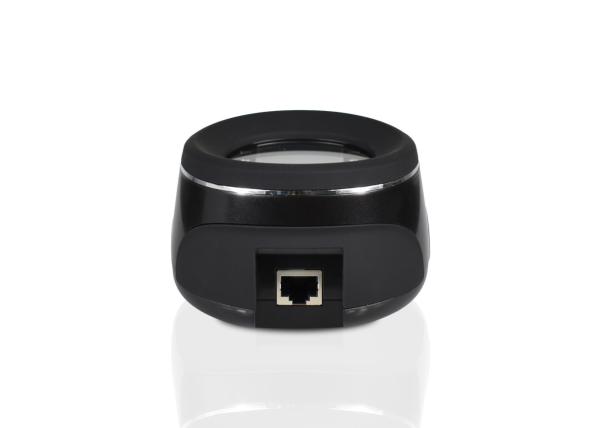

Counter Top Black Cell Phone Barcode Scanner USB with 4 white LED Light
1. Swift scanning
Delivers effortless, snappy and accurate reading of barcodes on various mobile phone LCD screens with different contrast ratios, colors and reflectances.
2. Easy to use
Simple configuration by scanning the programming barcodes provided in the user guide.
| Processor | IOTC 0370 CHIP |
| Interface | RS-232 (9.6~115.2Kbps) |
| USB 1.1(HID-KBW, HID-POS) |
| |
| Image Sensor | 752× 480 CMOS |
| | 2D: PDF417, Data Matrix, QR Code |
| | 1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, |
| | Codabar, Code 128, Code 93, ITF-6, ITF-14, |
| Symbologies | Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, |
| | Matrix 2 of 5, GS1 Databar (RSS-Expand, |
| | RSS-Limited, RSS-14), Code 39, Code 11, |
| | MSI-Plessey, Plessey |
| Scan Mode | Sense mode |
| Resolution | 10 mil |
| Light Source | White LED |
| Scan Window | 38.3mm*60.4mm |
| PCS | ≥30% |
| FOV | Diagonal: 85°, Horizontal: 63.7° , Vertical: 70° |
| Ambient Light | 0 ~ 100,000 LUX |
| Power Consumption | 1.75W (max.) |
| Power Adapter | Output: DC5V, 0.5A, Input: AC100~240V, 50~60Hz |
| Notification | Beep |
| Dimensions | 90mm(Diameter) x 60mm(H) |
| Weight | 300g |
| Operating Temperature | -10℃ to + 50 ℃ |
| Storage Temperature | -20℃ to + 60 ℃ |
| Humidity | 5% - 95%(non-condensing) |
| Certification | FCC Part15 Class B, CE EMC Class B |
Date Capture:
Sense reading module (default):
Step 1: Connect scanner to host via interface cable. The beep sound slows that the scanner work properly.
Step 2: Put barcodes right in front of the scan window, and adjust reading distance in 1-5 cm.
Step 3: When there is a beep sound, it means successful reading. The scanner will transfer barcode data to host, and then turn into standby mode.
