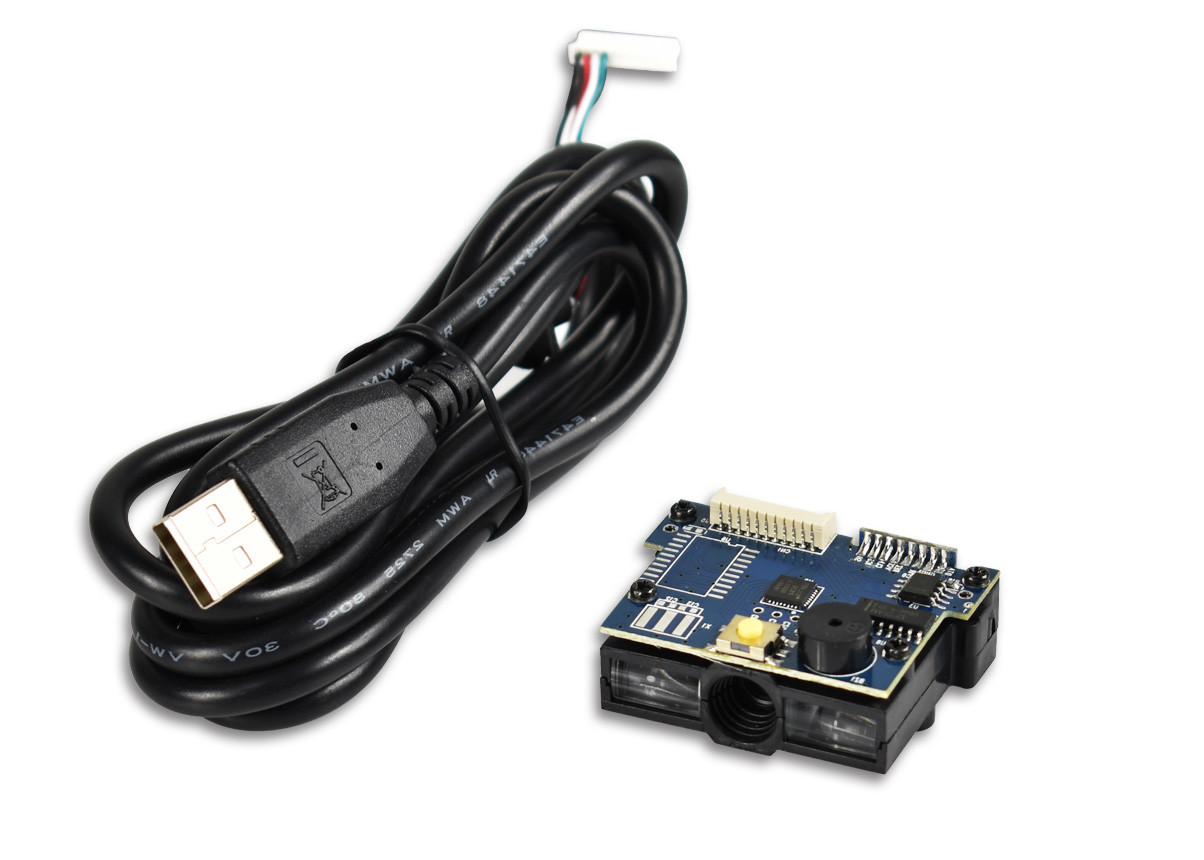

Auto Code Reader Industrial 1D Barcode Scanner USB Port For POS Systems
Characteristic
1. Linear barcode scanning: fast and easy to scan print code, paper code, screen code, and have nice performance in scanning abrasion code, fuzzy code and even damaged code
2. Multiple interfaces support: support USB,TTL-RS232,RS232,PS2,USB-COM.
3. USB fast transmission:to improve work efficiency, for better user experience.
4. Secondary development: support secondary development, and have been widely used in all kind of MCU.
5. Wide application area: apply to all kinds of lockers, MCU development and for medical and scientific research.
| Device Weight | <16g |
| | |
| Device Dimension | 32.2mm L * 44.15mm W * 20mm H |
| | |
| Cable Length | 1500mm(optional) |
| | |
| Interface | USB |
| | |
| Connector | 11pin pitch 1.25 |
| |
| Performance parameters |
| Light source | 632nm visible red light |
| | |
| Image Sensor | Linear CCD Sensor |
| | |
| Processor | ARM32-bit |
| | |
| Depth of field | 3-70CM |
| | |
| Resolution | ≥3mil/0.1mm@PCS90% |
| | |
| Print Contrast | 30%PCS |
| | |
| Work Voltage | DC 3.3-5V |
| | |
| Electriccurrent | 110mA(work)；30mA(stand by) |
| | |
| Image Resolution | 2500dpi |
| | |
| Ambient illumination | 100,000Lux Max |
| | |
| | EAN-8, EAN-13, Codabar, CODE11, CODE 39, CODE 93, CODE128,China |
| | Post, GS1-128, GS1 Limited, GS1 Omnidirectional, UPC-A, UPC-E, |
| Decode Capability | ISBN/ISSN, ISBT , Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, MSI, |
| Plessey, ITF14. |
| |
| |
| Environmental parameters |
| Operating Temperature | -20℃ to 50℃ |
| Storage Temperature | -40℃ to 70℃ |
| Relative humidity | 5% to 95%(Non-condensing) |
| Drop test | 1.2meter,100times |
| Shock resistance | 10H@125RPM |
Question 1: Can I get some samples? are they free?
Answer 1: Of course, but samples are not free.
Question 2: What's the delivery time?
Answer 2: Depend on product and quantity of your order,sample sent to you in 3 work days after you payment
Question 3: What about payment?
Answer 3: Payment terms: T/T,West Union and L/C etc.
Question 4: Can you list the product of your company?
Answer 4: Barcode Scanner Module, Bluetooth RFID Scanner, POS Terminal, Android Mainboard.
Question 5: Warranty time?
Answer 5: 1 year
Question 6: Do you provide EVK for barcode scanner module?
Answer 6: Yes,but not free.
Question 7: Product OEM?
Answer 7: Yes, the cost need to be added separately.
Question 8: Customer service?
Answer 8: Any questions of product after you receipt,please contact us,we'll reply you in 24 hours.
