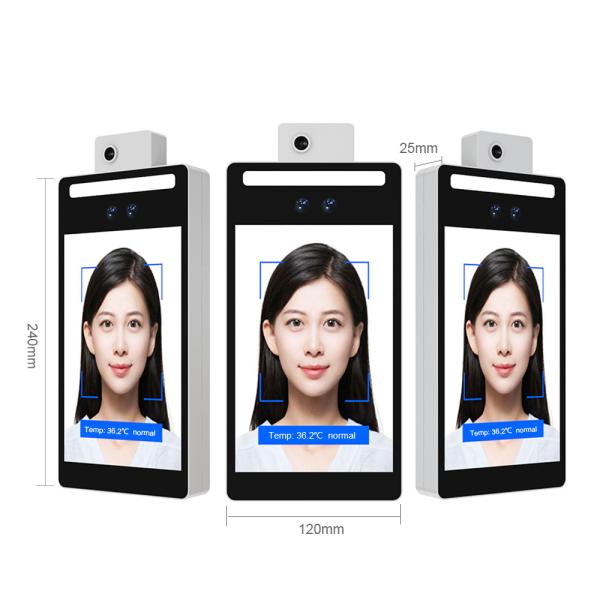

Indoor RS232 0.3w Android 7.1 Face Recognition Device

Brand Name : SCANMAX

Model Number : F2-H

Certification : CE, RoHS

Place of Origin : Shenzhen, Guangdong, China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : Western Union, T/T, Paypal

Supply Ability : 200PCS/Week

Delivery Time : Within 5 working days after receiving the balance

Packaging Details : Normal craft paper and foam

CPU : Quad-core, 1.8GHz

Storage Capacity : RAM 2G ROM 8G

Android : Android 7.1

Power : Adapter DC12V-2A

USB : USB 2.0

Power consumption : < 0.3w

Contact Now

F2-H Face Recognition Device with Human Temperature Measurement and Access Control


Features
*Dynamic detection, solve the deception of photos on various carriers
*Infrared mode at night, RGB dual fill light
*Support external access control card reader, QR code scanner, ID card reader
*Support RS232 serial port, Wiegand 26/34 output, support relay, exit switch, door magnetic output content
*Support local storage of 500,000 historical records
*Support 20,000 face library
*Support public network and local area network deployment
*Support HTTP interface connection；
*Support display configuration；
*Support identification distance configuration


Face Identification System Product Specification

F2-H Facial Recognition Temperature Measure Device Datasheet-EN

Face Recognition Temperature Measure all-in-one Machine
Product model F2-H

Characteristics

 Main function Face recognition temperature measurement
Use environmen Indoor , semi-outdoor
Color Silver

Camera

 Type RGB Infrared
Resolution 2 million pixels 2 million pixels
Aperture F2.8 F2.8
Focal length 3.18mm 3.18mm

Software

Dynamic

automatic

automatic

Vertical wide

angle

84°

84°

Horizontal wide

angle

54°

54°

Infrared

supplement light

 Support

White

supplement light

 Support

Core parameters

 Android Android7.1
CPU Quad-core, 1.8GHz
storage capacity RAM 2G ROM 8G

Human-comput er interaction

Monitor

8 inches, full viewing angle, 170 ° IPS LCD screen, resolution

800 * 1280
Touch screen support

Face sensing

module

 support

Face temperature measurement

module

support,Serial / I2C interface
Card reader Support, Optional

Communication

method

 Ethernet 10/100 Ethernet
WIFI Comply with IEEE802.11b / g / n standard (2.4G)

Identification Method

 Face Support
IC card Support, optional

Input output interface

 RJ45 interface Support 10/100 Mbps

Power supply

interface

DC12V-2A
Power Adapter DC12V-2A

Environmental requirements

Operating

temperature

 -20℃～60℃

Working

humidity

20%~90% (non-condensing)

Static protection

level

IEC61000-4-2, LEVEL3
External Interface Definition
Type Interface Explanation
USB USB 2.0 Support
Ethernet port RJ45 10/100 Ethernet

Relay

NC COM NO

Relay normal off/Common/normal on.Usually,door lock supply is positively connected to the COM port,and then according to the door lock type,relay power negatively connected NO port or NC

port. Note: Maximum load of relay contact is 2A

Gate sensor

IN

GND

Check door open/close status, input

Exit

button

PUSH1

GND

Press the button,door opening control signal,input

Serial

RX

TX

RS232

Output power

5V

GND

Support device external output 5V

Wiegand

WG_D1 WG_D0

GND

Wiegand output interface, support 26bit / 34bit protocol

Input power

GND

12V+

 Power input:12V DC

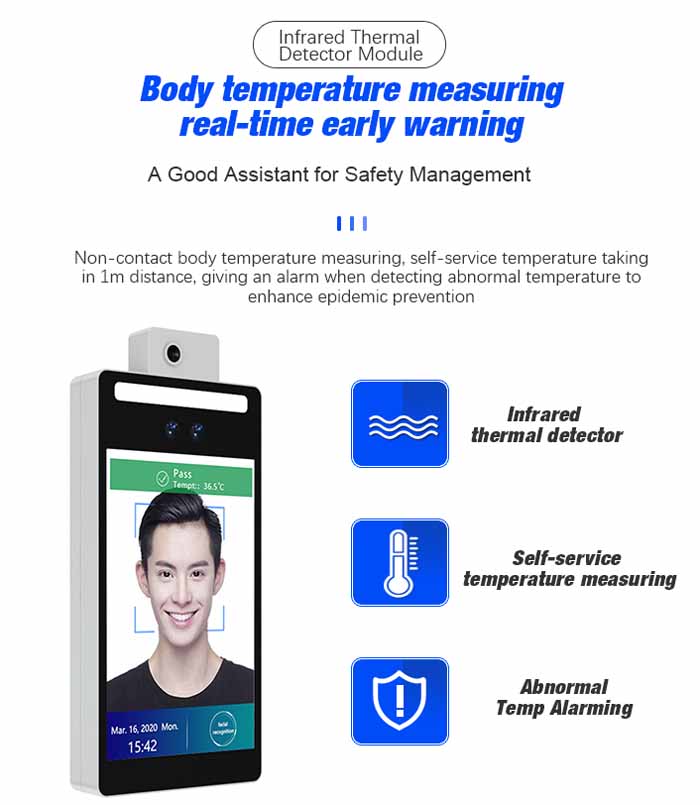

Temperature measurement module

 Operating temperature

0℃ ~ +55℃
Storage temperature

-20℃ ~ +65℃
Power consumption

< 0.3w

Basic Parameters

Pixel

32*32 Real-time temperature output
Measurement accuracy

I + 0.5℃
Measuring distance

0.3 ~ 1.0m

WIFI

2.4G 802.11b/g/n

Bluetooth

BluetooH4.0
