Embedded 2D Image Barcode Scanner OEM Laser Barcode Scanner RS232 Module

Name: Embedded 2D Image Barcode Scanner OEM Laser Barcode Scanner RS232 Module
Brand: Rakinda
Price: 1 USD

Embedded 2D Image Barcode Scanner OEM Laser Barcode Scanner RS232 Module Manufactures

Brand Name : Rakinda

Model Number : LV30

Place of Origin : China

MOQ : 1PCS

Payment Terms : Paypal,, T/T, Credit card

Supply Ability : 300PCS/Week

Delivery Time : Within 5 working days after receiving the balance

Packaging Details : Normal craft paper and foam

Certification : CE ROHS FCC

Price : Negotiation

Image sensor : 752*480 CMOS

Symbologies : 1D/2D

Illumination : Red LED

Ambient Light : 0 ~ 100,000 LUX

Power Consumption : 0.76 W

Operating Voltage : 3.3±10% VDC

Dimensions : 21.3(W)*11.6(D)*15.5(H)mm

Operating Temperature : -20℃~ +60℃

Contact Now

Embedded 2D Image Barcode Scanner OEM Laser Barcode Scanner RS232 Module

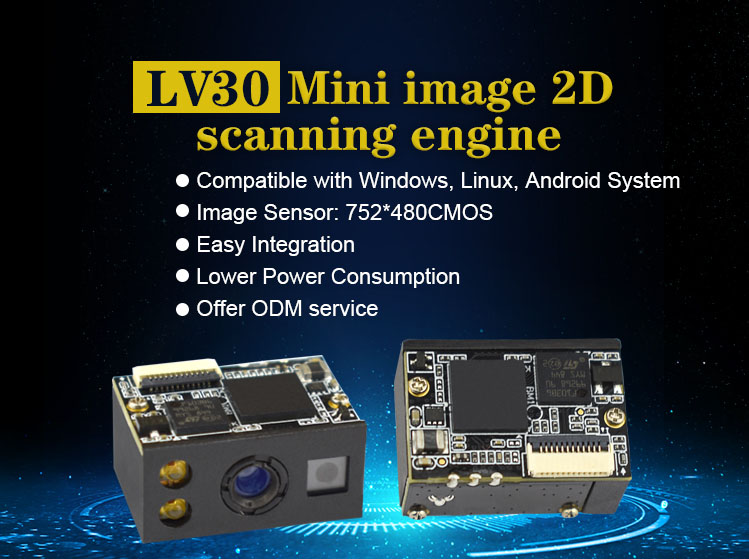

Description: Seamless integration of CMOS image sensor and decoder board makes the engine small, lightweight and easyfor integration.LV30 is seamless upgrade for Motorola SE955 due to theirsame size and bottom screw hole. Thus,if you want to upgrade your solution from 1D to 2D, there is no need to change mould

Features:

1: ARM CORTEX 32-Bits

2: International leading level of intelligent image system

3: Imported scanning engine

4: Rapid application development

5: Accurately read barcode symbols

Four modes:

1: Trigger reading mode

2: Continuous

3: Auto sensing

4: Command control mode

Product Parameters:

Interface	TTL-232, USB (optional)
Image Sensor	752×480 CMOS
Symbologies	2D: PDF 417, DataMatrix (ECC200,ECC000,050,080,100,140), QR Code1D: Code 128,EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5,ITF-6,ITF-14,ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey, etc.
Illumination	Red LED 612nm-624nm, 650nm laser
Resolution	> 3mil
Ambient Light	0 ~ 100,000 LUX
Power Consumption	0.76 W
Operating Voltage	3.3±10% VDC
Current @ 3.3 VDC	Operating Current 230 mA Standby Current 4mA (USB communication not supported); 7mA (USB communication supported) Sleep Current <5 uA
Dimensions	21.3(W)×11.6(D)×15.5(H)mm
Weight	5.0g
Operating Temperature	-20℃~ +60℃

Embedded 2D Image Barcode Scanner OEM Laser Barcode Scanner RS232 Module
