Industrial Fixed OEM 1D 2D Barcode Scanner Module

Name: Industrial Fixed OEM 1D 2D Barcode Scanner Module
Brand: Rakinda
Price: 1 USD

Industrial Fixed OEM 1D 2D Barcode Scanner Module Manufactures

Brand Name : Rakinda

Model Number : LV3000U

Certification : FCC Part15 Class B, CE EMC Class B

Place of Origin : China

MOQ : 1 pc

Price : Negotiation

Payment Terms : Western Union, T/T, paypal

Supply Ability : 10000 pcs per month

Delivery Time : 5-8 Working days

Packaging Details : carton package

Model : Industrial 2D Barcode Scanner Module

Interface : RS232/ USB

Image Sensor : 1280 x 800CMOS

Precision : 3 mil

Dimensions : 41.5 mm(L) X 49.5mm (W) X 24.3mm(H)

Weight : 75g

Contact Now

Industrial Fixed OEM 1D 2D Barcode Scanner Module

Features:

1. IR/Light Triggers

The combination of IR sensor and light sensor exhibits an improved sensitivity in activating the scanner to scan barcodes as they are presented, to achieve higher throughput and productivity.

2. Automatic Exposure Control (AEC)

The sensors in the LV3000U automatically adjust the brightness of supplementary lighting based on the light reflected off barcode.

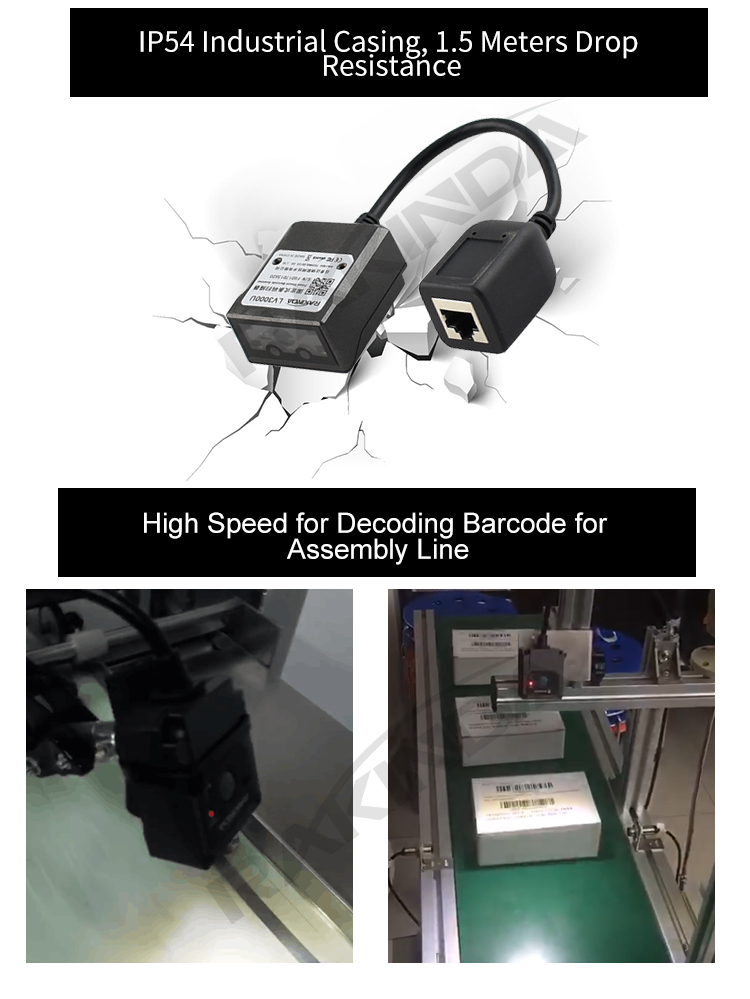

3. IP54-sealed Housing

The LV3000U is environmentally sealed to anIP54 rating to prevent dust, moisture and other contaminant from entering it.

4. Unmatched Reading Performance

The LV3000U is capable of reading 1D as well as high-volume 2D barcodes on the screencovered with protective film.

5. Highly Visible Laser Aimer

The LV3000U provides a laser-generated crosshair aiming pattern that is clear and bright even in bright sunlight, ensuring first time accurate aim.

6. 1.5m Drop Resistance

The scanner withstands multiple 1.5m drops toconcrete (for six sides, three drops per side).

Product name	Fixed Mount 2D Barcode Scanner
Item number	LV3000U

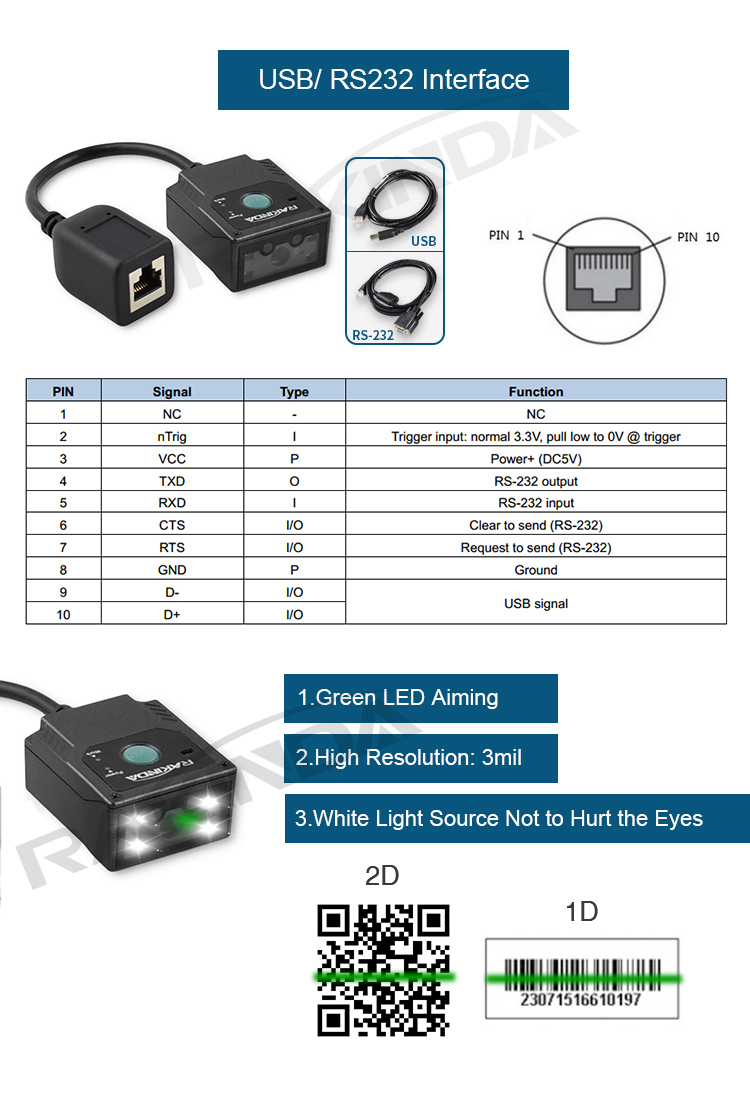

Interface	RS232/ USB
Image Sensor	1280 x 800CMOS

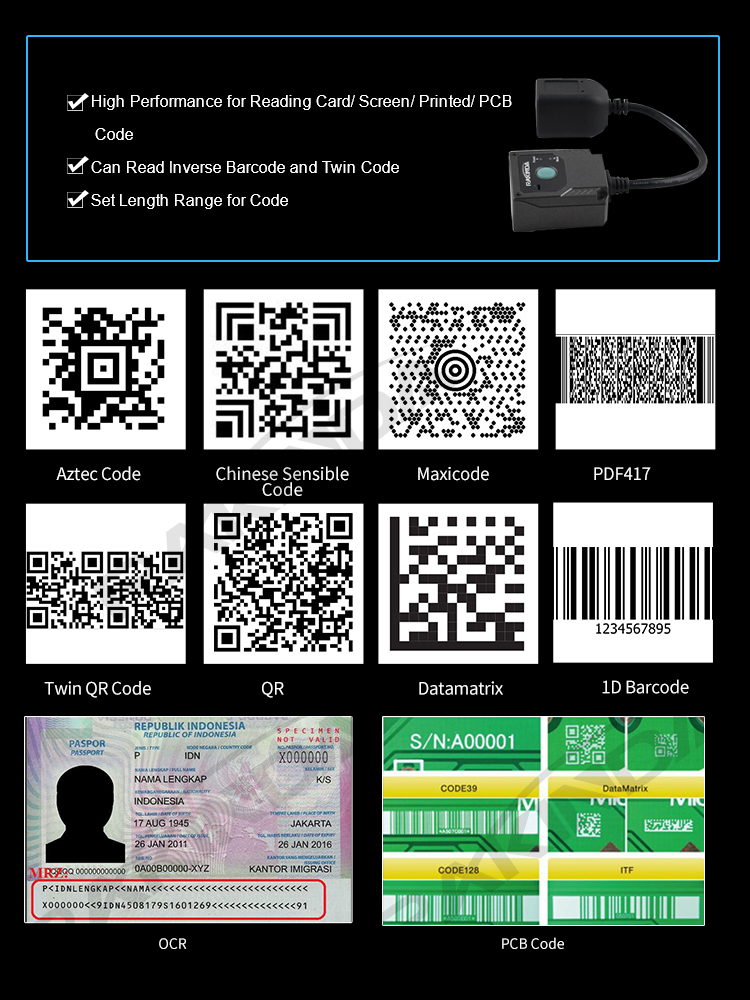

Symbologies	2D: PDF417, Data Matrix, QR Code, Aztec, CSC, Maxicode, Mircro QR, Micro PDF417, GM, Code One, etc. 1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14), Code 39, Code 11, MSI-Plessey, Plessey
Precision	3 mil
Light Source	White LED Laser Diode or green LED
Scan Mode	Sense Mode, Continuous Mode, Level Mode,Pulse Mode
Drop	1.5m
Power Consumption	1622mW (Typical)
Weight	75g
Dimensions	41.5 mm(L) X 49.5mm (W) X 24.3mm(H)
Notification	Beep, LED Indicator
Operating Temperature	-20 ℃ to +60 ℃
Storage Temperature	-40 ℃ to +70 ℃
Humidity	5% - 95% ( non-condensing )
Sealing	IP54
Certification	FCC Part15 Class B, CE EMC Class B

Industrial Fixed OEM 1D 2D Barcode Scanner Module
