LV30 Embedded 2D Image Barcode Scanner OEM Laser Barcode Scanner Module in POS Handheld Scanner

Name: LV30 Embedded 2D Image Barcode Scanner OEM Laser Barcode Scanner Module in POS Handheld Scanner
Brand: Rakinda
Price: 1 USD

LV30 Embedded 2D Image Barcode Scanner OEM Laser Barcode Scanner Module in POS Handheld Scanner Manufactures

Brand Name : Rakinda

Model Number : LV30

Certification : CE ROHS FCC

Place of Origin : China

MOQ : 1PCS

Price : Negotiation

Payment Terms : Western Union, T/T, L/C, D/A, D/P, MoneyGram

Supply Ability : 200PCS/Week

Delivery Time : Within 5 working days after receiving the balance

Packaging Details : Normal craft paper and foam

Interface : TTL-232, USB (optional)

Image Sensor : 752×480 CMOS

Symbologies : 2D: PDF 417, DataMatrix (ECC200,ECC000,050,080,100,140), QR Code1D: Code 128,EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5,ITF-6,ITF-14,ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5,

Illumination : Red LED 612nm-624nm, 650nm laser

Resolution : 3mil

Contact Now

LV30 bar code reading engine, the application of the world's leading chip smart new continent image recognition technology to create a new era of image-based two-dimensional bar code reading engine. Rakinda's two-dimensional decoder chip, the advanced image recognition algorithms and advanced chip design and manufacturing technology perfect fusion, which greatly simplifies the design of 2D bar code reader product design difficulty, establish two-dimensional video products, high performance, high reliability, low power Consumption of excellent benchmarking.

Product Parameters:

Interface	TTL-232, USB (optional)
Image Sensor	752×480 CMOS
Symbologies	2D: PDF 417, DataMatrix (ECC200,ECC000,050,080,100,140), QR Code1D: Code 128,EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5,ITF-6,ITF-14,ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey, etc.
Illumination	Red LED 612nm-624nm, 650nm laser
Resolution	> 3mil
Ambient Light	0 ~ 100,000 LUX
Power Consumption	0.76 W
Operating Voltage	3.3±10% VDC
Current @ 3.3 VDC	Operating Current 230 mA Standby Current 4mA (USB communication not supported); 7mA (USB communication supported) Sleep Current <5 uA
Dimensions	21.3(W)×11.6(D)×15.5(H)mm
Weight	5.0g
Operating Temperature	-20℃~ +60℃

LV30 Embedded 2D Image Barcode Scanner OEM Laser Barcode Scanner Module in POS Handheld Scanner

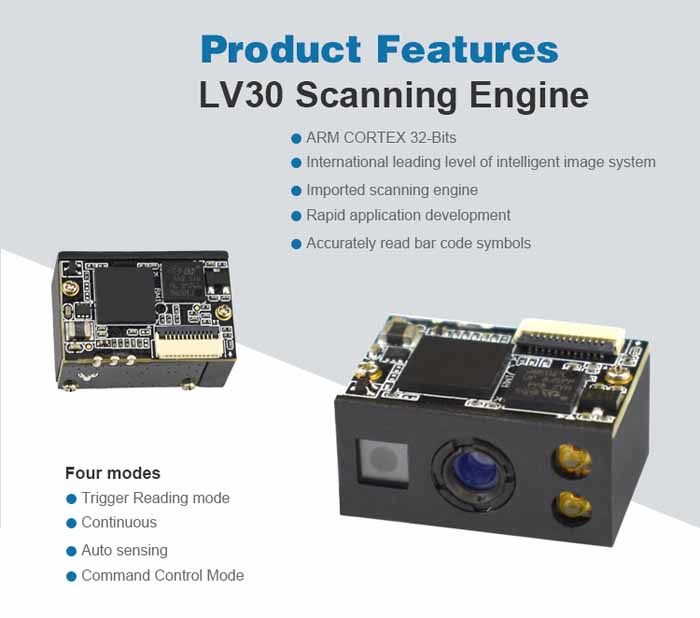

LV30 2D Barcode Scanner Module Details:

LV30 Embedded 2D Image Barcode Scanner OEM Laser Barcode Scanner Module in POS Handheld Scanner

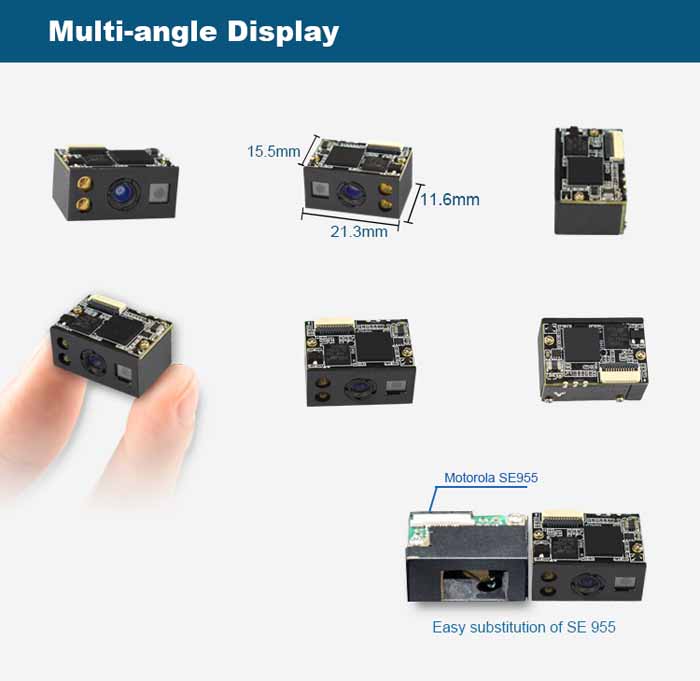

Seamless integration of CMOS image sensor and decoder board makes the engine small, lightweight

and easyfor integration.LV30 is seamless upgrade for Motorola SE955 due to theirsame size and bottom

screw hole. Thus,if you want to upgrade your solution from 1D to 2D, there is no need to change mould

LV30 Embedded 2D Image Barcode Scanner OEM Laser Barcode Scanner Module in POS Handheld Scanner

Confirguring Way:

Rakinda can supply user guide and intergration guide of barcode scanner to help you

embed it into device. Confirguring scanner by scanning setting code in user guide
