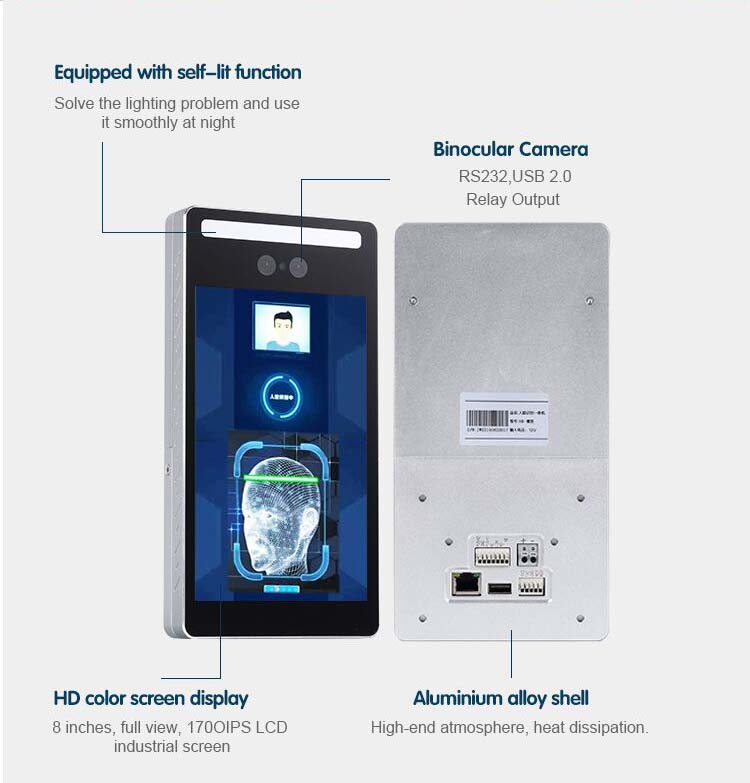

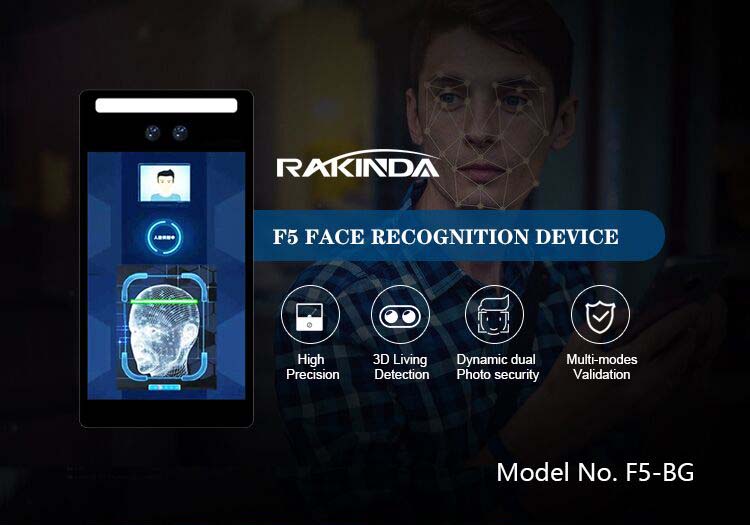

Rakinda F5 is an android biometric face recognition terminal with an infrared sensor and face recognition camera. It equipped with 8-inch touch screen, 1280*800 and HDR front camera.
In addition, Our F5 provides face recognition SDK for secondary development, comes with baidu algorithm. And we also have the self-developed independent face recognition management platform.
Product Parameters:
| Face Recognition Terminal Product Parameters |
| Screen | Size | 8", full viewing angle, 170° IPS LCD |
| Resolution | 800*1280 |
| Camera | Type | RGB | TOF |
| Resolution (horizontal × vertical) | Support 1080P/960P/720P/VGA | 640× 480 Pixel |
| Field of view (horizontal × vertical) | 74° × 56° @960P (Default) | 80° × 60° |
| 63° × 37° @1080P |
| 74° × 42° @720P |
| 74° × 56° @VGA |
| Frame rate (FPS) | Maximum 30FPS @960P/720P/VGA Up to 15FPS @1080P | MAX 30FPS |
| Detection distance (unit: meter) | 0.35-1.2 |
| light source | 850nm VCSEL |
| Working temperature (degree Celsius °C) | 0℃-50℃ |
| Core parameter | CPU | 6 cores, clocked at 2.0GHz |
| RAM | 2G |
| ROM | 16G |
| OS | Android 7.1.2 |
| Parts | Fill light | Infrared, LED fill light |
| Network module | Support wired, wireless (2.4GWi-Fi), wireless (USB external) |
| Bluetooth Module | 4.0 |
| 4G communication module | Optional (built-in or external) |
| ID card reader | Optional (built-in or external) |
| GPS | Optional (built-in or external) |
| Port | USB | USB2.0 1 |
| RD232 | RS232 serial port, 2.5mm terminal block 2P |
| Relay output | 2.5mm terminal block 3P |
| Wiegand interface | 2.5mm terminal block 3P, support Wiegand 26 |
| Wired network interface | RJ45 Gigabit network |
| General parameters | IP Protection | IP54 |
| Power | DC12V (±10%) /3A |
| Operating temperature | -20℃ ～70℃ |
| Working humidity | 10%～90 % |
| Power consumption | 22W MAX |
| Installation method | Wall bracket installation, gate bracket installation |
| Equipment size | 239.2mm*123.2mm*26.4mm |
| Weight | ≈1050g |
Product Features:
- QR Reading & Card Reading & Face Recognition All in One
- Infrared Binocular Camera to Support Live Detection
- Binocular Camera with RS232,USB 2.0,Relay Output
- Independent Software Management Platform by Supporting Multiple Languages
- Multi-system with Mass Storage Space & 99.9% Recognition Accuracy
- Support Online & Offline Version for Customer Flexible Choice
- Optional Designs for Choice--Wall Mounted & Turnstile Fixed Model
- 3D TOF Super Scanning with Highest Security & Integrating Baidu Algorithm
Fast recognition:
- Face tracking and detection takes about 20ms.
- Face feature extraction takes about 200ms.
- In vivo detection of face comparison time 0.6ms (1000 people library, multiple recognition average), 0.8ms (10000 people library, multiple recognition average).

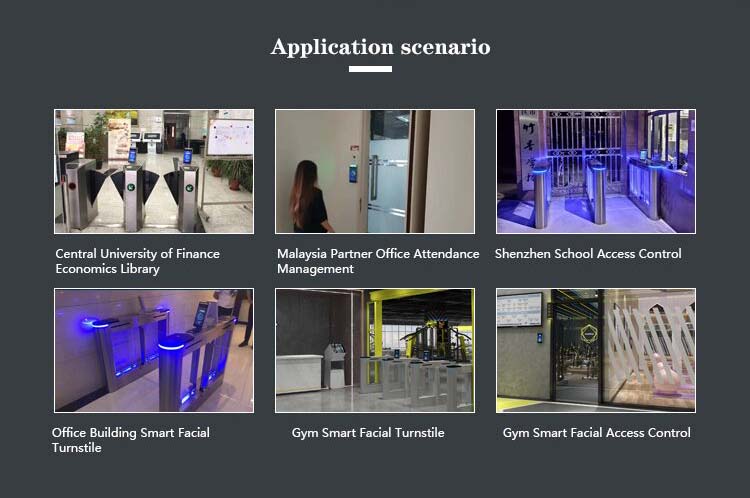

Application Scenario:
Applicable to office areas, hotels, access gates, office buildings, schools, shopping malls, shops, communities, public services and management projects, etc. where face access is required.
Three versions of this face recognition device
| F3 | F5 | F6 |
 | | Customized Model (Can be designed thinner) |
| Android 7.0 | Android 7.0 | Android 9.0 |
| DDR3 | DDR3 | DDR4 |
| CPU: 6 cores | CPU: 6 cores | CPU: 8 cores |
| RAM: 2GB | RAM: 2GB | RAM: 3GB |
| ROM: 8GB | ROM: 8GB | ROM: 16GB |
| 3D TOF Technology | Infrared Binocular | 3D TOF Technology + APU +4G |
| Standard Device | Standard Device | Customized |
