S80 Intelligent Scanner Devices Cash Register Mobile QR Code Payment Handheld Computer

Shenzhen Rakinda Technology Development Co., Ltd.

S80 Intelligent Scanner Devices Cash Register Mobile QR Code Payment Handheld Computer

Brand Name : RAKINDA

Model Number : S80

Place of Origin : CHINA

MOQ : 1

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 PCS/ week

Delivery Time : within 5 working days after receiving the balance

Packaging Details : Normal craft paper and foam

Certification : CE/CCC/UN38.3/RoHS/IP67

Display : 5.72inch 18:9 HD+(1440*720)

Size : 162×76.8×13.9mm

Weight : 252g(including battery)

Network connections : 4G/3G/2G、Wi-Fi、GPRS

CPU : Octa-core 2.0GHz

Protection level : IP67

Contact Now

Innovative technologysmooth and more efficient operation
* S80 is equipped with Octa core 2.0GHz CPU andAndroid11 OS with GMS certified,which issmooth,more secure and super experience
* With 4GB RAM+64GB ROM large memory,itworks smoother multitasking
* Highly integrated scanning.UHF RFID,NFC,PSAMin such small impact size
* A variety of scanning engine options to deal withall kinds of impossibilities

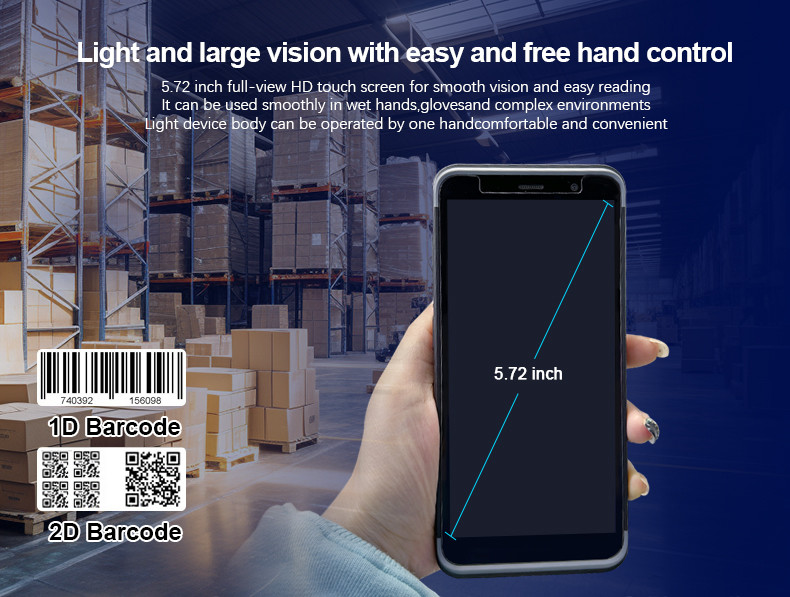

Light and large visionwith easy and free hand control
* 5.72 nch ful-view HD touch screen forsmooth vision and easy reading
* It can be used smoothly in wet hands,glovesand complex envrorments
* Light device bodly can be operated by one handcomfortable and convenient

Rebuilt classic 360°super protection strong and durable
* P67,1.5 m drap resstant,special desgned forharsh ervironments
* It is easy to deal with during bad weather suchas rain,snow and fog

Handheld Computer Parameters

Basic Parameters
Size 162×76.8×13.9mm
Weight 252g(including battery)
Display 5.72inch 18:9 HD+(1440*720)
Touch panel Gorilla glass,plated with anti-fingerprint film,supports wet hand operation
Backlit LED Backlit

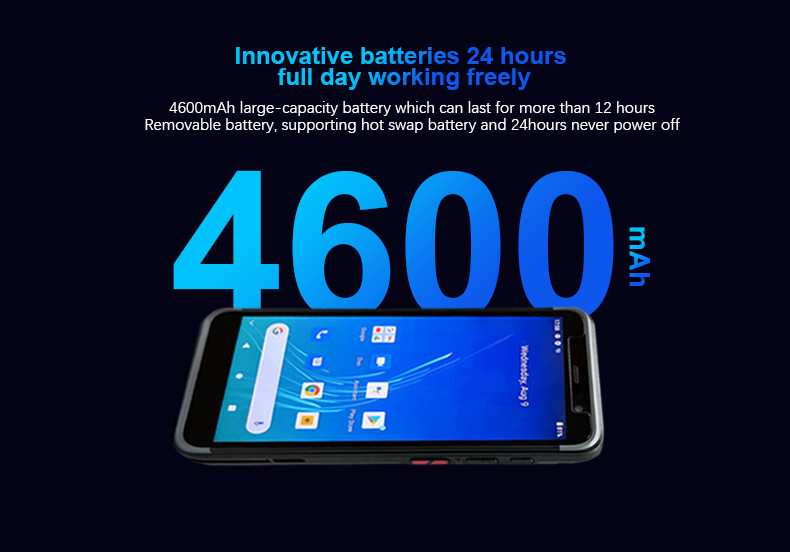

POWER 4600mAh,3.8V removable lithium battery;spare batteryloptional):150mAh More than 8hours working time,and standby time 300hours
SIM SIM+TF:nano sim+nano sim/TF Card
USB port Type-c,Support OTG
Network connections 4G/3G/2G,Wi-Fi,GPRS
Notification Cue Tone;multi-colorled;Vibration
Keyboard 3 virtual buttons:Back,Home,Menu
Audio frequency Amicrophone,speaker,receiver
Performance Parameter
CPU Octa-core 2.0GHz
OS Android 11 with GMS
Memory Standard 4GB+64GB(LPDDR4X+EMMC), Option 3GB+32GB/6G+128G
Working environment
Operating temperature -20℃ to 55℃
Humidity 5%to 95%(Non-condensation)
Drop specification Within the working temperature range,it can withstand repeated falls from a height of 1.5 meters to the concrete floor
Roll Specification Can Withstand 200 times 1.6ft/0.5 m rolling impact;meets or exceeds IEC
Vibration Random(10 Hz-30KHz);60 minutes per shaft
Electrostatic protection +/-10kv air discharge +/-6kv contact discharge
Protection level IP67
Wireless Communication
WWAN

Asia+Europe band:

GSM:Band 2/3/5/8

WCDMA:Band 1/2/5/8

TD-SCDMA:Band 34/39

CDMA:Band BC0

TDD-LTE:Band 34/38/39/40/41

FDD-LTE:Band 1/3/5/7/8/20

American band:

GSM:Band 2/3/5/8

WCDMA:Band 1/2/4/5CDMA:Band BC0

TDD-LTE:Band 40/41

FDD-LTE:Band B1/2/4/5/7/28A/28B

WIFI

Wifi Frequency:2.4GHz&5GHz

Protocol:802.11a/b/g/n/ac/r/e/i Fast Roaming

navigation Beidou,Glonass,GPS,Galileo,QZSS
Version Bluetooth 5.0
Data Collection
Scanning engine Professional scanner,one/two-dimensional barcode
Supported 1D barcode types

UPC/EAN,Bookland EAN,UCC Coupon

Code,ISSN EAN,Code 128,GS1-128,ISBT 128,

Code 39,Trioptic Code 39,Code 32,Code 93,

Code 11,Interleaved 2 of 5,Discrete 2 of

5,Codabar,MSl,Chinese 2 of 5,Korean 3 of

5,Matrix 2 of5,Inverse 1D,GS1

DataBar,Composite Codes

Supported 2D barcode types

PDF417,MicroPDF417,Data Matrix,Data Matrix

Inverse,Maxicode,QR Code,MicroQR,QR

inverse,Aztec,Aztec Inverse,Postal Codes:US

Postnet,US Planet,UK Postal,Australian Postal,

Japan Postal,Netherlands KIX Code,USPS

4CB/One/Intelligent Mail,UPS FICS Pstal

Camera

Front:5MP FF

Rear:13MPAF,and2MP FF secondary camera(optional)

Internet of things function
NFC

working band:13.56MHz

Support Protocol:MifareClassic (MF1)NDEF,

Nfcv(15693),Ultraligh(MFO),

IsoDep(CPU MF3),IsoDep(CPU)Read Distance:0-5cm

RFID

Workingband:CHINA:920-925MHz;

USA:902-928MHz;EU:865-868MHz;

Protocol:ISO18000-6C/EPCC1G2

Read Distance:around 0.8m depends on thetags

Security PSAM Supporting ISO7816 standard,supporting 1PSAM cards
Sensors Light Sensor,distance sensor,gravity accelerometer,geomagnetic sensor,Hall Effect Sensor (Optional)
Others
Certification CE/CCC/UN38.3/RoHS/IP67
Standard accessories 5V/2A adapter/Data cable/battery/quick guide/UHF test tag

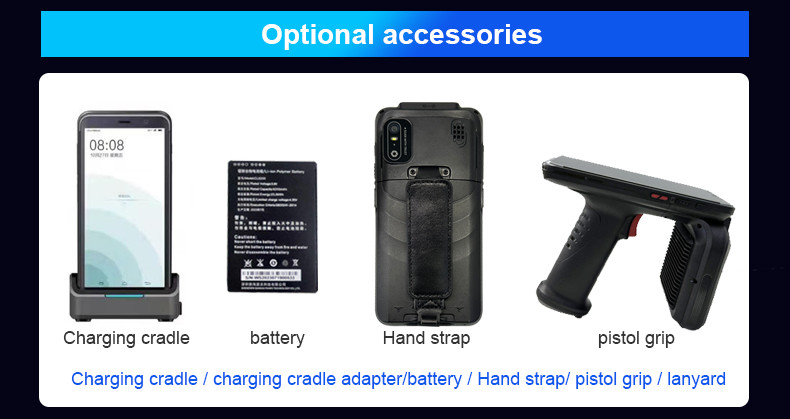

Optional accessories Charging cradle/charging cradle adapter/battery/temperedglass /hand strap/pistol grip/lanyard
