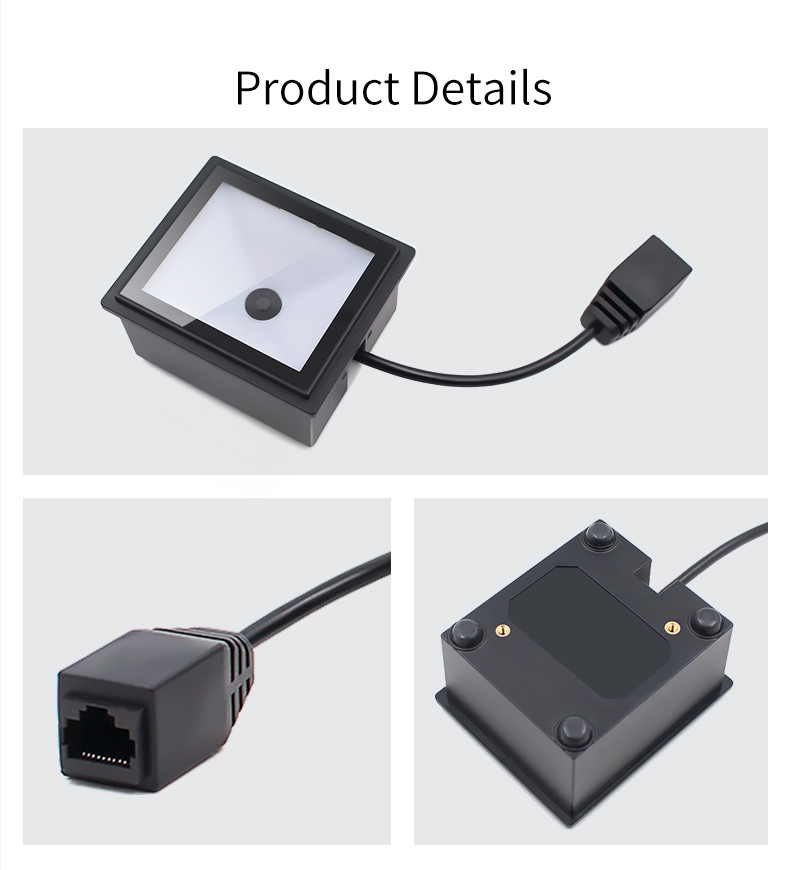

LV3000 fixed mount scanner for raspberry pi use in access control system

Product Categories

Shenzhen Rakinda Technology Development Co., Ltd.

Contact Now

Name: LV3000 fixed mount scanner for raspberry pi use in access control system
Brand: Rakinda
Price: 1 USD

Brand Name : Rakinda

Model Number : LV3000

Certification : CE,FCC,ROHS

Place of Origin : China

MOQ : 1pcs

Price : Negotiation

Payment Terms : Western Union, T/T, Paypal

Supply Ability : 100PCS/Week

Delivery Time : 5-8working days

Packaging Details : 1PCS/Box

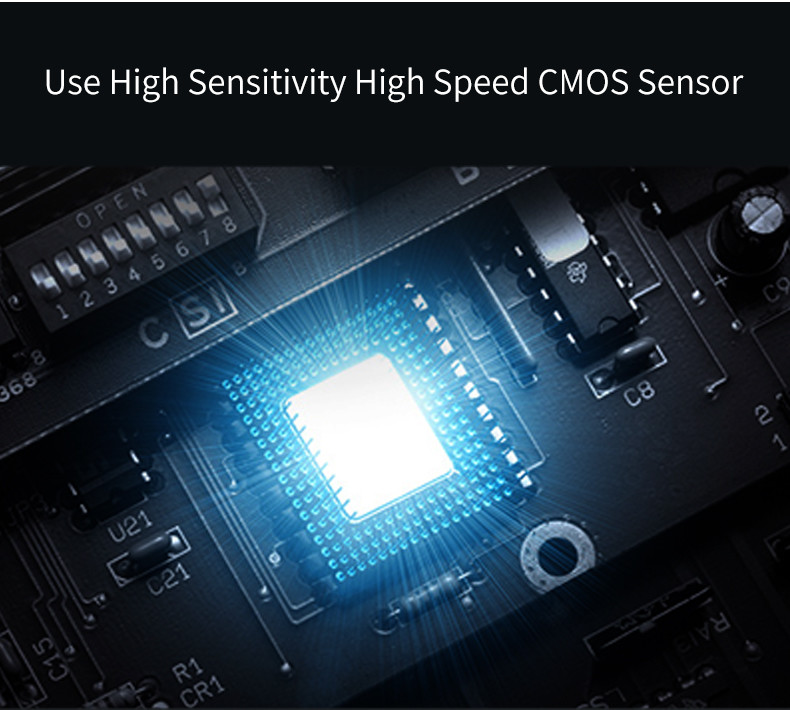

Image Sensor : 640*480 Coms

Illumination : White LED

Resolution* : ≥5mil

Scan Angle** : Skew±70°，Pitch±70°，Roll 360°

Operating Temperature : 0℃~+60℃

Storage Temperature : -40℃~+70℃

Contact Now

Rakinda LV3000 datamatrix decoder 2D Fixed Mount QR Code reader pdf417 Barcode Scanner

Parameterso of 2D QR Code Barcode Scanner

Performance	Image Sensor		640*480 Coms
	Illumination		White LED
	Symbologies	2D	(PDF417),(QR Code),(Micro QR),(Data Matrix),(Aztec),(Hanxi code)
	Symbologies	1D	(Codabar),(Code 39),(Code 32),(Industrial 2 of 5),(Interleaved 2 of 5),(Standard 2 of 5),(Matrix 2 of 5),(Code 93),(Code 11),(Code 128),(UPC-A),(UPC-E),(EAN/JAN-8),(EAN/JAN-13),(GS1 DataBar(RSS14)
	Resolution*		≥5mil
	Typical Decode Range*	EAN-13 (13mil)	5mm~90mm(Barcode Size:31mm*7mm)
		PDF417 (6mil)	5mm~55mm(Barcode Size:14mm*7mm)
		Code39 (6.6mil)	18mm~45mm(Barcode Size:27mm*8mm)
		Data Matrix (10mil)	5mm~60mm(Barcode Size:5mm*5mm)
		QR Code (15mil)	5mm~80mm(Barcode Size:10mm*10mm)
	Min Print Contract*		≥20%
	Scan Angle**		Skew±70°,Pitch±70°,Roll 360°
	FOV		Diagonal 87.1°,Horizontal 74°,Vertical 65°

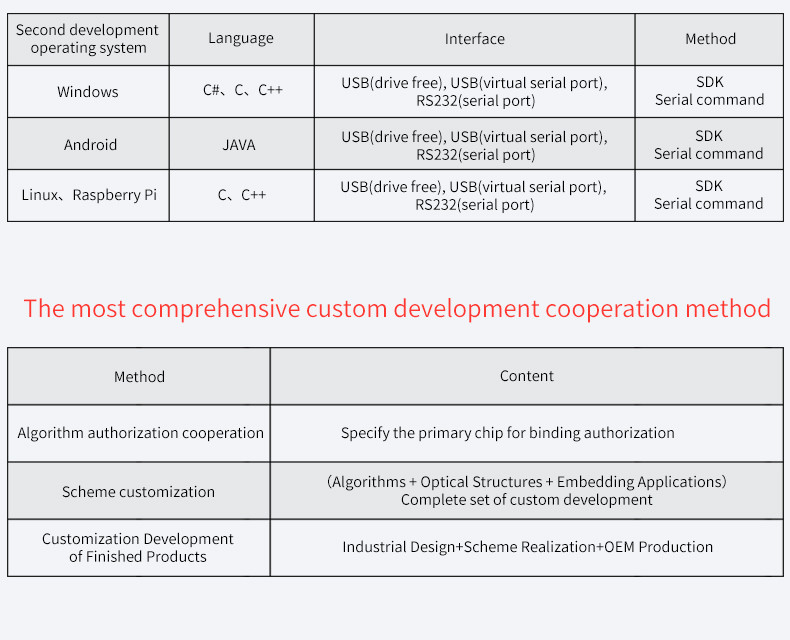

Electronic	Interface		USB,RS232 ,RS485 ,TTL,Wiegand
	Dimension(mm)		78(W)×66.2(D)×41(H)(Max)
	Operating Voltage		5VDC±5%
	Power		1400mW(Typical)
	Current@5 VDC	Operating	280mA(RMS Typical),300mA(RMS Max)
	Current@5 VDC	Standby	150mA
Environmental	Operating Temperature		0℃~+60℃
	Storage Temperature		-40℃~+70℃
	Operating Humidity		5%~95%(Non-Condensing)
	Embient Light		0~100,000LUX
Accessories	Cable	USB	USB Cable
		RS-232	RS232 Cable
		TTL	TTL Cable
		RS-485	RS485Cable
		WG	Wiegand Cable

LV3000 fixed mount scanner for raspberry pi use in access control system
