Compact Fixed Mount 2D Barcode Scanner for Self-Service Kiosks for Mainstream 1D/2D Codes Including PDF417 Data Matrix QR and AZTEC

Product Categories
Shenzhen Rakinda Technology Development Co., Ltd.
Contact Now

Compact Fixed Mount 2D Barcode Scanner for Self-Service Kiosks for Mainstream 1D/2D Codes Including PDF417 Data Matrix QR and AZTEC

  • 1
  • 2
  • 3

Brand Name : Rakinda

Model Number : LV5500

Certification : CE,FCC, ROHS

Place of Origin : China

MOQ : 1PCS

Price : Negotiation

Packaging Details : Normal craft paper and foam

Supply Ability : 100+PCS+Month

Delivery Time : 5-8 work days

Depth Of Scan : 10-800mm

Reading Distance : 40mm~185mm

Barcode : 1D CCD

Storage Temperature : -20°C to 60°C

Cmos Acquisition : 60 fps

Depth Contrast Signal : 30%

Dimensions : 6.5 x 4.5 x 2.5 inches

Weigh : 75g

Contact Now

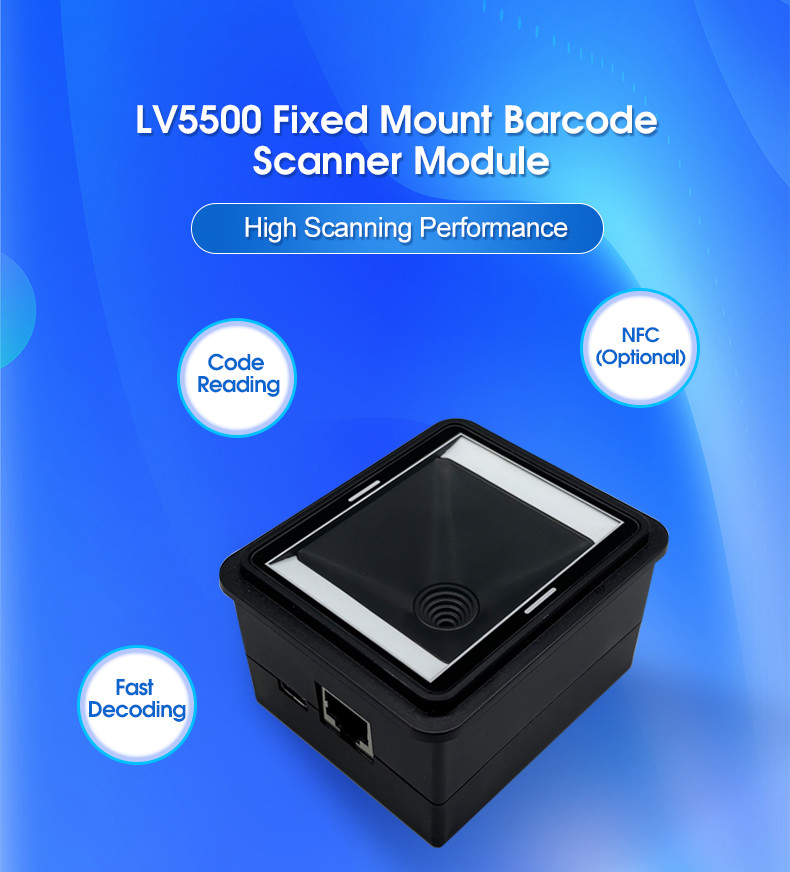

The LV5500 is a high-performance fixed mount 2D barcode scanner optimized for self-service terminals, payment kiosks, and smart lockers. With its compact design and wide voltage support (5V–16V optional), it offers seamless integration across various embedded applications.

Key Features:

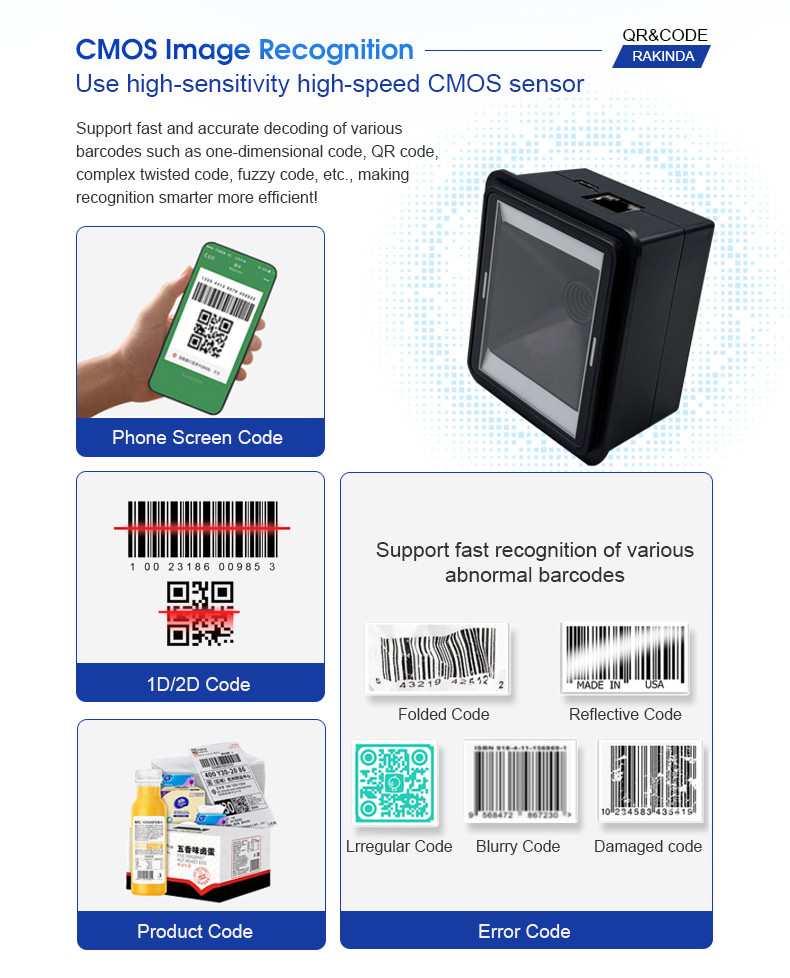

Reads both paper and screen QR/barcodes with ease
USB, TTL, RS232, and RS485 interfaces available
Supports mainstream 1D/2D codes, including PDF417, Data Matrix, QR, and AZTEC
Ideal for self-check-in terminals, parcel lockers, and queue systems
Enhanced wide-angle field of view and fast decode engine

QR Code Reader Module Parameters

Scan Performance Imaging sensor 640×480 CMOS
Lighting White, LED 6500K
Read code system 2D PDF417, Data Matrix, QR Code,AZTEC
1D And EAN-13,EAN-8,UPC-A,UPC-E,Code 39,Code 128,ISBN,Code 93,Code 11,UCC/EAN-128,GS1 Databar,Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Codabar,Standard 2 of 5,MSI-Plessey,GS1 composite code, et al
Reading accuracy 1D ≥6mil 2D≥10mil
Typical reading of the depth of field 10-200CM Alipay payment code
20-120CM EAN13 13mil
Symbol Contrast ≥20%
Bar code sensitivity Ttilt ± 55°, deflection ± 55°, and rotation 360°
Field of view Angle Horizontal, 66°, and 50° vertical

Machinery

Electrical Parameters

 Communication interface USB (optional, HID, virtual serial port), TTL serial port; Customizable RS232, RS485

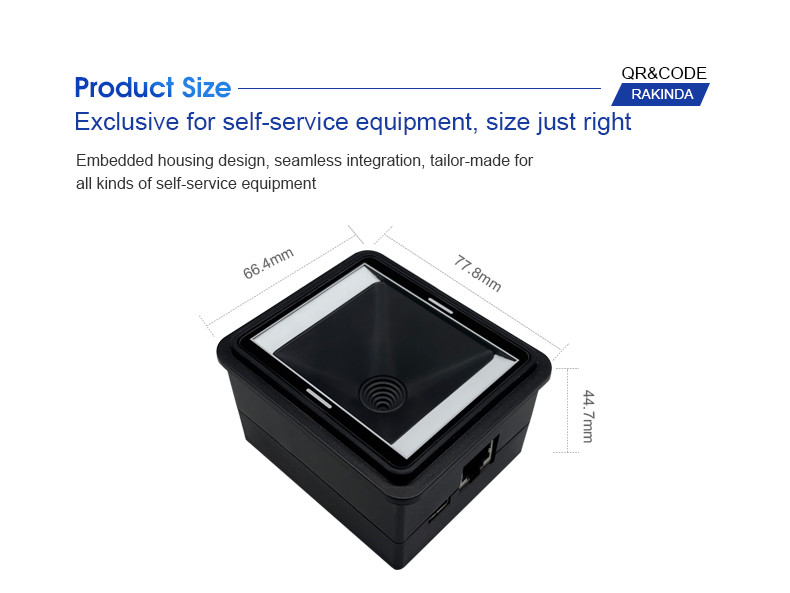

Visual dimensions (mm) 77.8(D)×66.4(W)×44.7 (H)
Weight 70g
Working voltage

Power supply is 1:4-6V (5V power supply) by default

Power supply 2: customized 5V-16V wide voltage

Note: Power supply 1 and power supply 2, choose one or the other, not at the same time
Rated current (Typical value) is less than 190 mA (5V input)
Enviromental Parameter Working temperature -20℃~+60℃
Storage temperature -40℃~+70℃
Working humidity 5%~95% (no condensation)
Environmental light 0~100,000LUX
Thermal Shock Resistance Maximum temperature 60°C (140 °F)
Minimum temperature -20°C (-4 °F)
Cycle index 30 minutes for high temperature; 30 minutes for low temperature
Period 24
