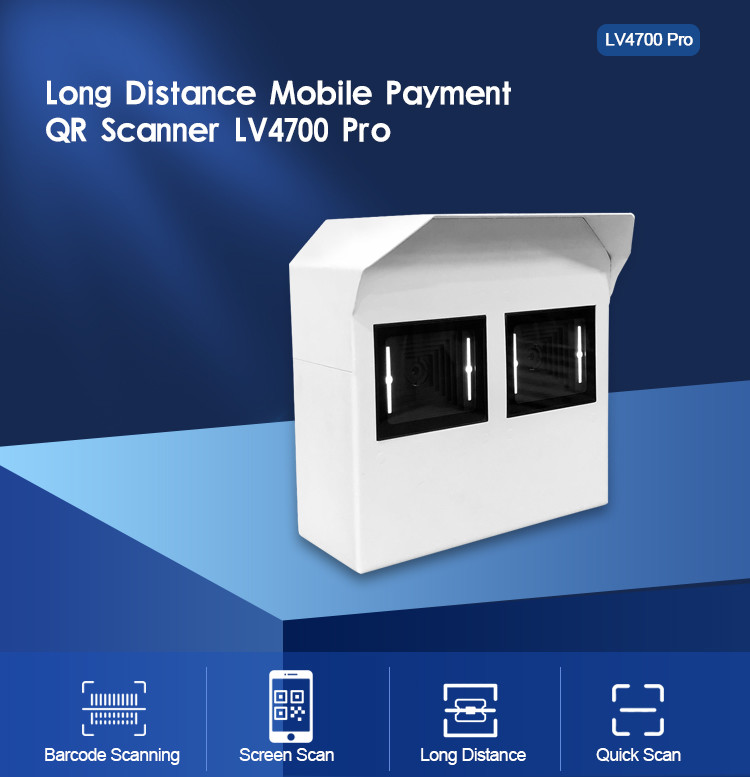

Code 128 Fixed Mount Barcode Scanner Long Distance QR Code Scanner
1.5M Long Distance Mobile Payment Parking QR Code Scanner
Rakinda LV4700Pro Barcode Scanner for Parking Lot, Expressway Toll Booths
Description of Parking QR Code Scanner
Rakinda LV4700Pro is equipped with 2 high image sensor barcode scanner modules, which is able to read QR codes and
Code 128 at long distance, from 10cm to 150cm. With metal case enclosure, the scanner is durable, and good option as
mobile payment scanners for parking lot or highway toll boths. With USB or RS232 interface, the scanner is easy for installation
or integration into other devices.
Features of Long Distance QR Scanner

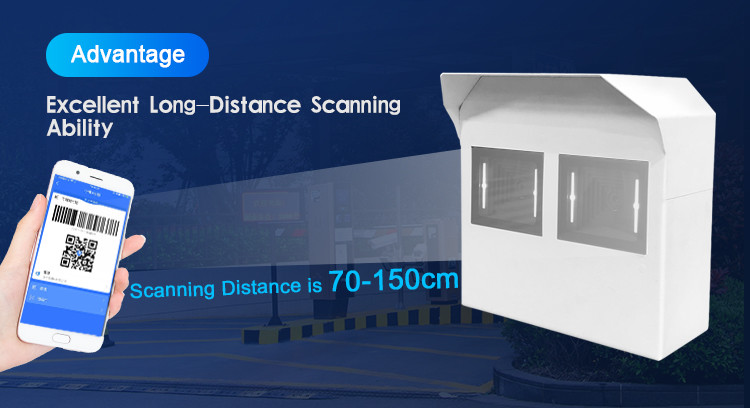

1. Reading Distance Up to 1.5 Meter
2. Durable Metal Case Enclosure
3. High Image Sensor 1280*800CMOS
4. Snappy on-screen Barcode Capture
5. RGB LED Indicator: RED, Green, White, Blue Color Options
6. Outstanding Power Efficiency
LV4700Pro Parameters:
| | Product Name | LV4700Pro |
| Performance | Typical Depth of Field | Image Sensor | 1280 * 800 CMOS |
| Light Source | White LED |
| Symbologies | 2D | QR Code |
| 1D | Code 128 |
| Resolution | ≥5mil |
| QR Code | 100mm~1500mm |
| Symbol Contrast | 30% |
| Scan Angle** | Roll: 360°, Pitch: ±45°, Skew: ±40° |
| Field of View | Horizontal 41°, Vertical 26.3° |

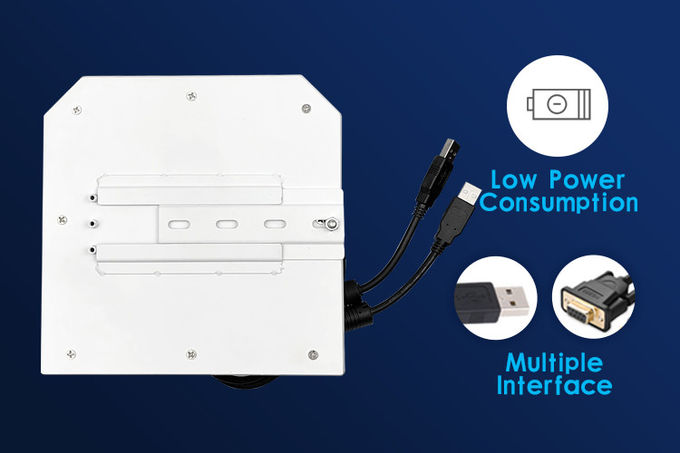

| Mechanical | Interface | RS-232, USB |
| Electrical | Current 5VDC | Power Adapter | DC5V power adapter to power the scanner with RS-232 cable. |
| Dimensions | 61.5(W)×65.5(D)×31.9(H)mm (max.) |
| Weight | 2kgs |
| Environmental | Operating Temperature | -40℃~+70℃ |
| Storage Temperature | -40℃~+℃ |
| Humidity | 5%~95% (non-condensing) |
| Ambient Light | 0~100000lux (natural light) |
| Accessories | Cable | USB Used to connect the scanner to a host device. RS-232 Used to connect the scanner to a host device. |

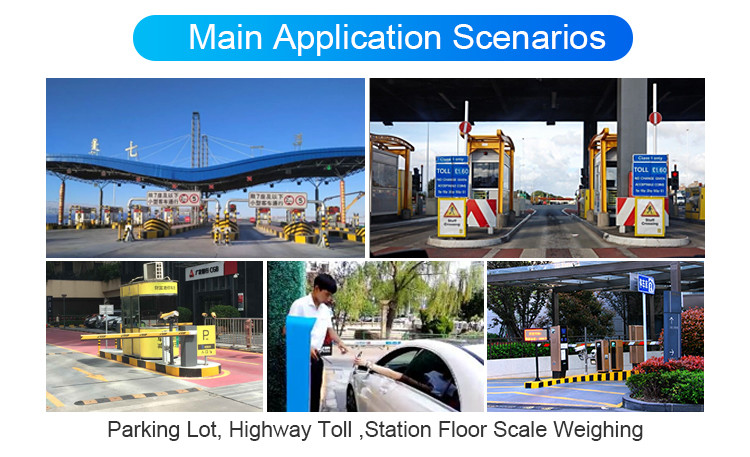

Applications:
Rakinda Parking Lot, Expess toll boths, or other applications which needs remote barcode scanning
Company Advantages:
1. Rakinda has been in Automatic Identification and Internet of Things since 2000
2. Several offices in Guangzhou, Shenzhen, Xiamen, Suzhou, Beijing and Chongqing.
3. We have more than 10 R&D personnels with over 20 years experience.
4. We can ship with fast express within 24 hours, and arrive customer in 3~7 days.
FAQ:
Q1: Can I get some samples? Are they free?
A1: We support 1-2pcs sample order. Samples should be paid.
Q2: How can I buy?
A2: We are trade assurance supplier at Alibaba. You can start online order directly. Or pls contact us directly
according to the contact info. We will send you proper link directly.
Q3: What is your payment method?
A3: We accept Alibaba online orders by Credit card, PayPal ,T /T
Q4: How long is your warranty time?
A4: Our officially promised warranty time is 1 year after delivery.
Q5: Where can we download the user manual of the scanners?
A5: We will send by email after you get samples.
Q6: What's the lead time?
A6: For sample, it is typically within 5-7days by DHL. For bulk order, it depends on quantity and model you order.
Q7: Can you provide OEM service?
A7: Yes. We need further discuss about details.
Q8: If I come across any problem during product using, where I can get the support ?
A8: We support you technically 24h/7.please send all your questions to us. and we will give the professional,patient,
expliantion by email or call in time.
Q9: How do you ship the scanners usually?
A9: Since it is light and compact, we usually use DHL, UPS, Fedex, TNT and post air mail. We also can ship the goods by your shipping account or other express agent you provided.
