3 Interfaces Barcode Scan Engine 2500dpi Image Resolution for Smart Devices

Name: 3 Interfaces Barcode Scan Engine 2500dpi Image Resolution for Smart Devices
Brand: RAKINDA
Price: 1 USD

3 Interfaces Barcode Scan Engine 2500dpi Image Resolution for Smart Devices Manufactures

Brand Name : RAKINDA

Model Number : LV12

Certification : CE, RoHS

Place of Origin : Shenzhen, Guangdong, China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : Western Union, T/T, paypal

Supply Ability : 1000 PCS/ week

Delivery Time : within 5 working days after receiving the balance

Packaging Details : barcode scanner+USB/RS232 Cable+ Power Adaptor(for RS232 only). Normal craft paper and foam.

Item name : 1D Barcode Scanner Module

Electriccurrent : 110mA（work）；30mA（stand by）

Shock resistance : 10H@125RPM

Drop test : 1.2meter, 100times

Dimensions : 32.2mm L * 44.15mm W * 20mm H

Image Resolution : 2500dpi

Ambient illumination : 100,000Lux Max

Cable Length : 1500mm（optional）

Contact Now

3 Interfaces Barcode Scan Engine 2500dpi Image Resolution for Smart Devices

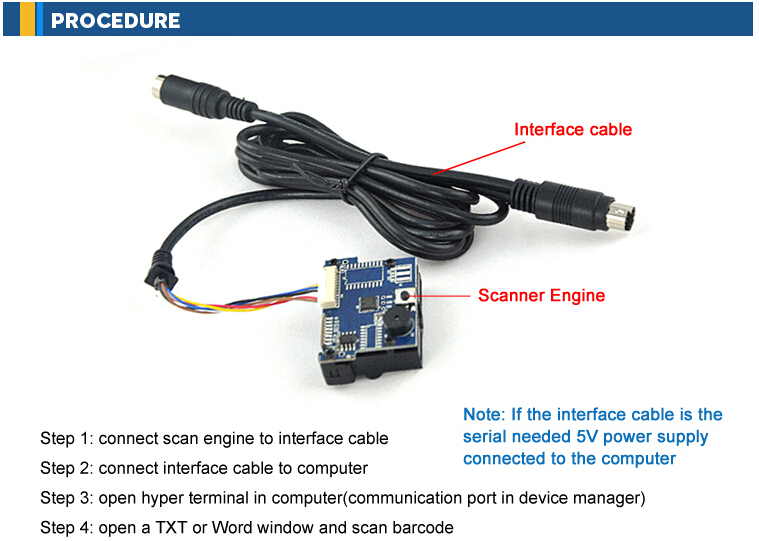

This all in one module is the most microcontroller-friendly we could find. It is powered over 5V and instead of a USB port, it has a PS/2 interface and acts like a 'keyboard'. In fact, its designed to be a 'pass through keyboard wedge' device for point-of-sale terminals. What's nice about PS/2 is that it uses a single connector for power and data, and uses two data pins. When a barcode is scanned, the raw data is decoded, parity-checked and spit out as if they were typed on a keyboard.

Like all barcode scanners, you can do some basic configuration by powering it up and 'scanning' in special barcodes in the manual. For example you can change the delay between 'typed' characters, or what the terminating character, if any, should be. Check the download tab for the printable manual. If you'd like to set up the scanner to be different than the default, print it out on plain white paper and scan each 'configuration' code. The config will be saved to non-volatile memory so you only have to do it once.

LV12 Datasheet en.pdf

Technical Specifications of LV12 1D barcode scanner module

Product name	1D barcode scanner module
Item number	LV12
Interface	RS232/ USB/ KB
Image Sensor	Linear CCD Sensor
Processor Type	C8051 compatible
Operating Freq.	24.5 MHz (Internal)
Scan Rate	100 scans/sec ±10%
Reading Distance	230mm@20mil/0.5mm, PCS90%
Print Contrast Ratio	PCS45%@4mil/0.1mm
Resolution	5mil/0.127mm@PCS90%
Reading Angle	Test Conditions : Code 39, 10mil/0.25mm, PCS90%
Pitch Angle	5°~70° (±5°)
Skew Tolerance	5°~60° (±5°)
Light Source	Visible Red light 632nm LED
Ambient Light	5000 Lux Max.
Weight	17g
Dimensions	44(W)mm30(D)mm19.2(H)mm
Operating Temperature	0 ℃ to + 50 ℃
Storage Temperature	-20 ℃ to + 70 ℃
Relative Humidity	20% - 95% ( non-condensing )
Decode Capability	EAN-8, EAN-13, Codabar, CODE11, CODE 39, CODE 93, CODE128,China Post, GS1-128, GS1 Limited, GS1 Omnidirectional, UPC-A, UPC-E, ISBN/ISSN, ISBT , Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, MSI, Plessey, ITF14.
Environmental parameters
Operating Temperature	-20℃ to 50℃
Storage Temperature	-40℃ to 70℃
Relative humidity	5% to 95%(Non-condensing)
Drop test	1.2meter,100times

3 Interfaces Barcode Scan Engine 2500dpi Image Resolution for Smart Devices

Barcode Scanner FAQ

Q1: Can I get some samples? are they free?
A1: Of course, but samples are not free.
Q2: What's the delivery time?
A2: Depend on product and quantity of your order,sample could be sent to you in 3 work days after receiving balance.
Q3: What about payment?
A3: Payment terms: T/T,West Union and L/C etc.
Q4: Can you list the product of your company?
A4: Barcode Scanner Module, Desktop Barcode Scanner, Handheld Barcode Scanner, Portable Barcode Scanner Module, Bluetooth RFID Scanner, POS Terminal, Android Mainboard etc.
Q5: What's the OS of the POS?
A5: Android and Windows,details please refer to the technical data of the Product.
Q6: Where can we download the SDK/user manual for some of your products?
A6: SDK/User manual will be sent to you by email after the sample order.
Q7: Warranty time?
A7: 1 year
Q8: Do you provide Evaluation Kit for testing barcode scanner module?
A8: Yes, but you need to pay for EVK separately.
Q9: Product OEM?
A9: Yes, but it requiries the certain MOQ and the cost need to be added separately.
Q10: Customer service?
A10: Any questions of product after your receipt, please contact us,we'll reply you in 24 hours.
