Long Range Fixed UHF RFID Reader Dual CPU Aluminum Alloy For Rugged Environment

Brand Name : SCANMAX

Model Number : SM-RF807

Certification : GB/T7722-2005

Place of Origin : China

MOQ : 1PCS

Price : Negotiation

Payment Terms : Western Union, T/T, L/C, D/A, D/P, MoneyGram

Supply Ability : 200PCS/Week

Delivery Time : Within 5 working days after receiving the balance

Packaging Details : Normal craft paper and foam

Weight : 2.5 kg (5.5 lb)

Case Material : Aluminum Alloy

Operating Temperature : -20°C to 70°C (-4°F to 158°F)

Storage Temperature : -30°C to +75°C (32°F to 104°F)

POE supply(Option) : Support IEEE802.3AF & IEEE802.3AT protocol

Interface : RS232,10/100M Ethernet

Contact Now

The compact, cost-effective SM-RF807 fixed RFID Reader supports diverse RFID applications in both enterprise and industrial environments. The new SM-RF807 UHF RFID reader introduces advanced RFID radio technology for faster, more accurate read rates and more consistent performance even in challenging environments.

Fixed RFID Reader Key Features

1. Mature Technology
2. Stable Performance

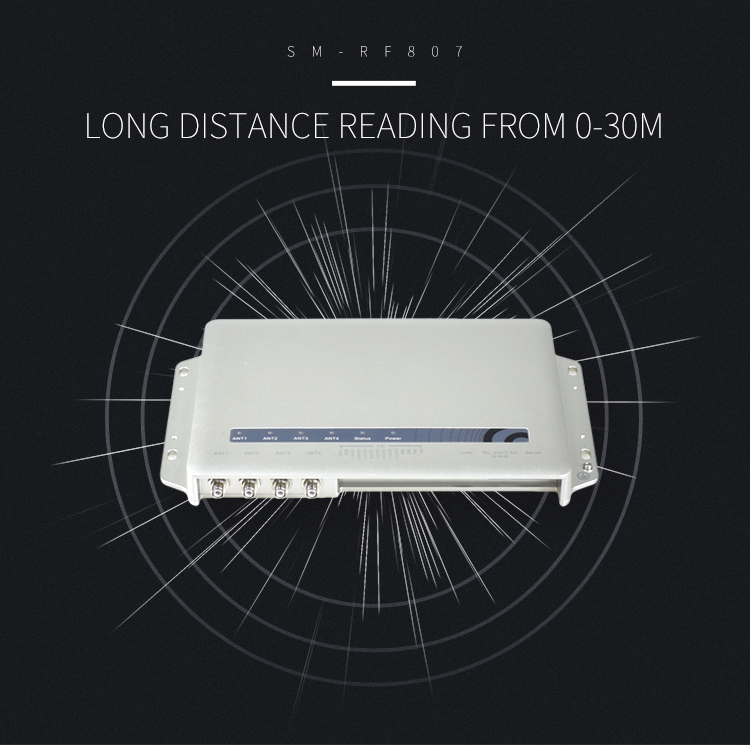

3. Long Distance Reading from 0-30m
4. Hot selling with safe stock always
5. Support POE and IP54 Industrial Protection
6. TCP/IP and RS232 communication

Long Range Fixed UHF RFID Reader Dual CPU Aluminum Alloy For Rugged Environment

Long Range Fixed UHF RFID Reader Dual CPU Aluminum Alloy For Rugged Environment

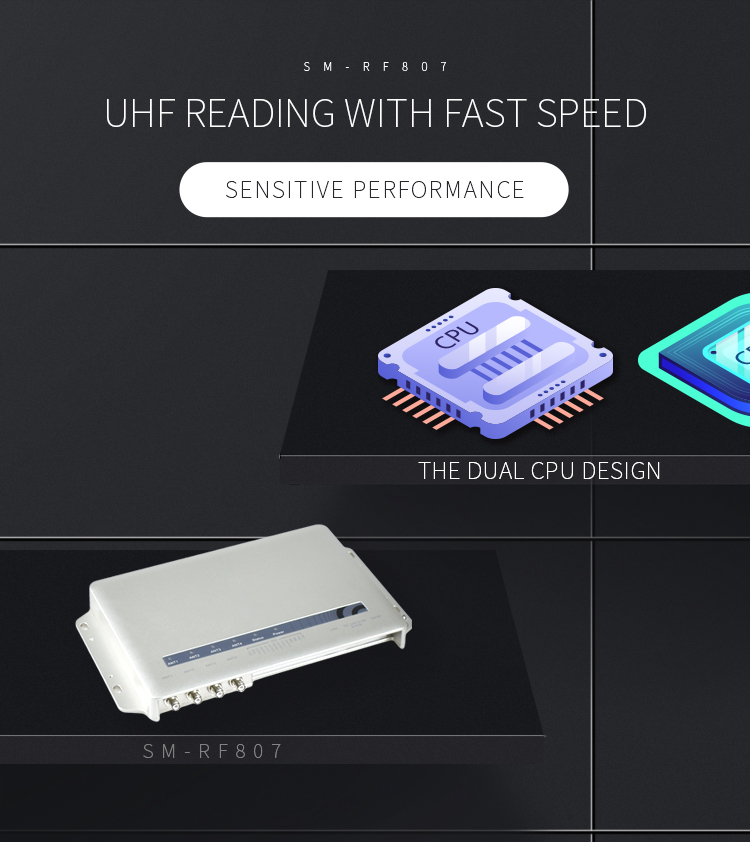

UHF Advantage

1. UHF reading with fast speed and sensitive performance
2. It meets the ISO 18000-6C standard
3. It supports EPC global Class 1 Gen 2 protocol
4. The Dual CPU design

Fixed RFID Reader Parameters

Physical Parameters
Dimensions 360 mm x 220 mm x 39 mm(14.17 in x 8.66 in x 1.54 in)
Weight 2.5 kg (5.5 lb)
Case Material Aluminum Alloy
Antenna Interface 4 TNC External Antenna Interface
Working Environment
Operating Temperature -20°C to 70°C (-4°F to 158°F)
Storage Temperature -30°C to +75°C (32°F to 104°F)
Humidity Range -30°C to 75°C (-22°F to 167°F)
5% to 95%, non-condensing
Power Source
Adapter(not included) AC Input 100-240V, 50-60Hz;
DC Output 24V±5%/2.5A
DC Power Supply 24V-30V (24V/2.5A recommended)
POE supply(Option) Support IEEE802.3AF & IEEE802.3AT protocol
Power Consumption 5W to 24W
Frequency Supported
SSRRC China 840-845Mhz, 920-925Mhz
FCC North America 902-928Mhz
ETSI Europe ETSI Europe
Communication Interface & Network Protocol
Interface RS232,10/100M Ethernet
GPIO Interface 4 channels of opto-isolated input (5V, <20MA)
4-way relay control output (30V, <1000MA)
Network Protocol TCP/IP,DHCP,SSH,FTP,TELNET,UDP
Performance Parameter
GPIO 4 Photoelectric Isolation Input (5 V, <20 mA); 4 Relay Control
Tag Data Rate (Relevant to Configurations)
RF Output Power 40 kbps to 400 kbps, 11 dBm to 33 dBm (step of 1 dBm)
Product Certification
CMIIT ID 2012DP2304
FCCID TQ4XC-RF807
CE ID ES120229146E

Long Range Fixed UHF RFID Reader Dual CPU Aluminum Alloy For Rugged Environment
